P&G Linear Displacement Sensor, as used by all major Teams in WSBK and MotoGP.

• 150mm Stroke
• IP66 Sealing
• high Precision ball joint mounting for M5 Screws
• Repeatability : less than 0.01mm !
• Shaft seal Life : 20 million Operations
• Linearity typical : +/- 0.07 %
• 1 Meter output Cable
• Electrical output : min 0.5 to max. 99.5% of applied Volts


Can be used in conjunction with all Data-Loggers (Motec ,PI , Marelli , AIM, TEAC.... whatever you have.
High Precision and Durability to rely on in case you like to built Traction Control by Influence of Suspension Positions or Velocities.

Suspension Sensors are a great help, as they allow you to see a lot ( partially depending on Logging Analysis Software ):

1. Which range of Fork - and Shock travel I do use at all ?
2. How often the Suspension has been at it's limits of working travel , or
3. is my Suspension too stiff and I'm far away from using the full capability of the Suspension ?
4. do I loose or do I win Traction at Acceleration out of the Corner ( check the Shock movement ) ?
5. What are the maximum velocities front and rear Suspension, do they work in a similar Window ?

Electrical Connection:
- Red : +5V ( preferably )
- Black : Ground
- Yellow : Signal

Delivery Content :
P&G 150mm IP66 Linear Displacement Sensor with 1m Cable .

A Recommendation is to use this Sensor also ( additional ) as steering angle Sensor, which might be very helpful for calibration and supervising of Sensors ( safety Issues ), aswell as maybe to have some small Influence in Traction Control.

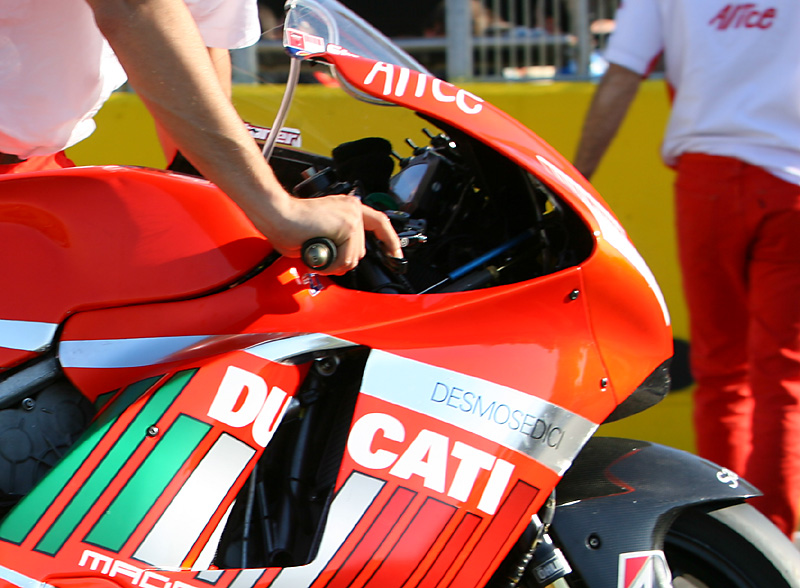

Most MotoGP Bikes ( as here the Desmosedici from Stoner ) do have this Sensor mounted next to the steering damper.

BIKE	PRICE (EXCL. VAT)	PRICE (INCL. VAT)	QUANTITY
All makes and models	€ 226.00	€ 268.94

Linear Suspension Sensor mounting Clamp



• 2Pcs Assy - no removal of upper Triple necessary
• 2 Different mounting Spots ( M5) for Sensor available

---

 Available ID's :

• 53 mm
• 54 mm
• 56 mm
• 58 mm

Custom Clamps ( non listed ID's) available on special request

Note: when you order please type the desired ID into the comment field





BIKE	PRICE (EXCL. VAT)	PRICE (INCL. VAT)	QUANTITY
All makes and models	€ 100.00	€ 119.00

P&G Linear Displacement Sensor for the rear Suspension, as used by all major Teams in WSBK and MotoGP.

• 75 mm Stroke
• IP66 Sealing
• high Precision ball joint mounting for M5 Screws
• Repeatability : less than 0.01mm !
• Shaft seal Life : 20 million Operations
• Linearity typical : +/- 0.07 %
• 1 Meter output Cable
• Electrical output : min 0.5 to max. 99.5% of applied Volts


Can be used in conjunction with all Data-Loggers (Motec ,PI , Marelli , AIM, TEAC.... whatever you have.
High Precision and Durability to rely on in case you like to built Traction Control by Influence of Suspension Positions or Velocities.

Suspension Sensors are a great help, as they allow you to see a lot ( partially depending on Logging Analysis Software ):

1. Which range of Fork - and Shock travel I do use at all ?
2. How often the Suspension has been at it's limits of working travel , or
3. is my Suspension too stiff and I'm far away from using the full capability of the Suspension ?
4. do I loose or do I win Traction at Acceleration out of the Corner ( check the Shock movement ) ?
5. What are the maximum velocities front and rear Suspension, do they work in a similar Window ?

Electrical Connection:
- Red : +5V ( preferably )
- Black : Ground
- Yellow : Signal

Delivery Content :
P&G 75mm IP66 Linear Displacement Sensor with 1m Cable .

A Recommendation is to use this Sensor also ( additional ) as steering angle Sensor, which might be very helpful for calibration and supervising of Sensors ( safety Issues ), aswell as maybe to have some small Influence in Traction Control.

Most MotoGP Bikes ( I.E: the Desmosedici from Stoner, check the Pic ) do have this Sensor mounted next to the steering damper.





But this short 75mm Stroke Sensor fits best for all next to topmount steering-damper positioning, as shown below.

BIKE	PRICE (EXCL. VAT)	PRICE (INCL. VAT)	QUANTITY
All makes and models	€ 200.00	€ 238.00

The complete Suspension Sensor Kit.

Both Sensors which are mentioned on this Page , plus :
- 2 Female miniature Bajonett Closure Connectors
- 2 Male miniature Bajonett Closure Connectors
- 2 3 Wire Signal Cables each 1.5 Meter

BIKE	PRICE (EXCL. VAT)	PRICE (INCL. VAT)	QUANTITY
All makes and models	€ 432.00	€ 514.08
